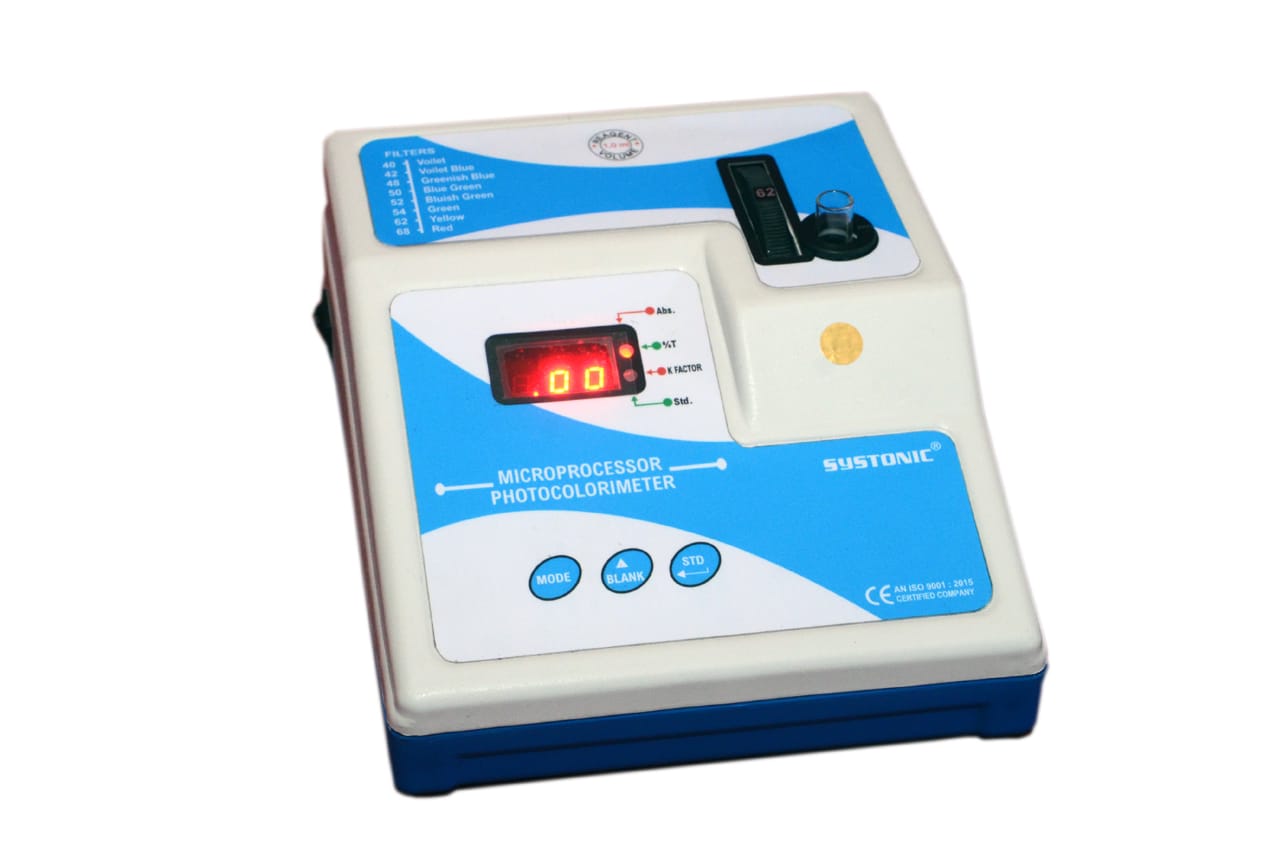

Microprocessor Colorometer S- 916
Features:
- %T, Abs, Conc. K Factor
- 1 ml Sample Volume
- Auto Zeroing Facility
- Highly Stable & Accurate
- Range 400 to 700 nm
- Soft Touch Membrane Keys.
Product Description
Microprocessor Photo Colorimeter – 916 is a compact and easy to operate instrument for Photo Colorimeter analysis of any concentration. The output is available on a 3 digit seven segment red LED display in terms of %Transmission (%T), Absorbance (Abs.), and Concentration (Conc.) and KFactor. This is a unique system that combines convenience with accuracy and precision in analysis. The instrument includes a wide range of filters covering wavelength from 420-680 nm in the form of in-built filters. The filter setting is controlled by a rotating disc. An in-built shutter control is provided to avoid fatigue of photodiode. When the instrument is switched on, Lamp glows and light passes through the solution to the detector and absorbance or %T measurement is taken. Light source is pre-focused tungsten lamp. The instrument confirms to all general & safety standards.
Technical Specifications:-
| Model | S- 916 |
| Wavelength Range | 400-700 nm |
| Filter System | In-built filter disc with 8 Standard filters |
| Sample Volume | 1 ml |
| Sample System | 10 mm path-length matched glass test tubes |
| Detector | Silicon Photodiode |
| Display | 3 Digit 7- Segment Red LED Display |
| Key Board | Soft Touch Membrane Keys |
| Light Sources | 3V, LED 100 MA |
| Readout | %T: 0-100, Abs: 0-1.99, Conc: 1-999, K- 1-999 |
| Power Supply | 230V, 10% AC, 50Hz |
| Weight | 2.5 Kg (Approx) |
Accessories:-
- Matched Test Tube (A set of 5)
- Test Tube Stand
- Operation Manual
- Dust Cover
